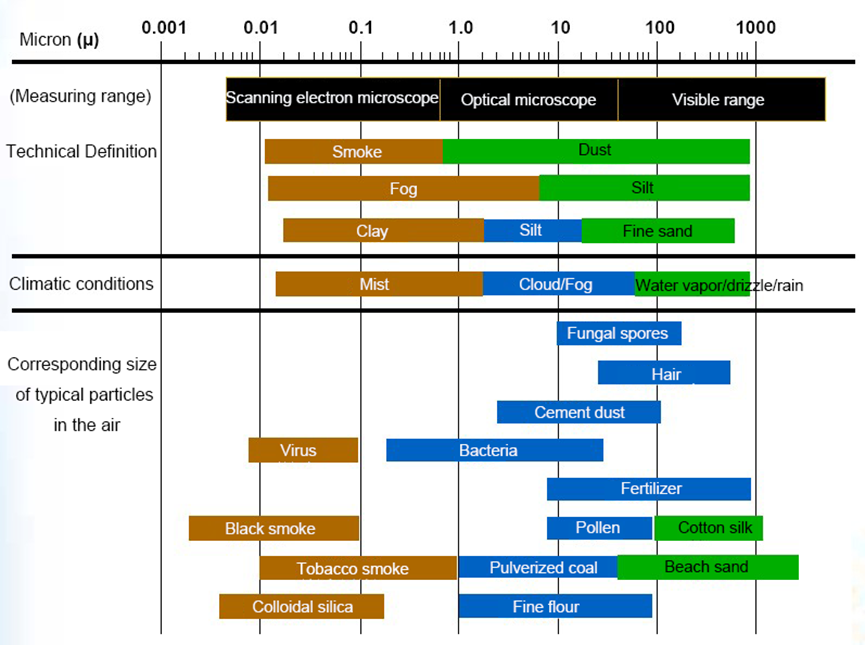

During grinding and polishing working process, there are a large number of particles, sparks and powders thrown from the tangential direction of the contact point between the workpiece and the grinding wheel, meanwhile, tiny dust(airborne dust—mainly capture object) rapidly diffuses from the workpiece in an instant. Generally, after the dust enter lung, it may cause various lung diseases, some non-metallic dust such as silicon, asbestos and carbon black etc., because can’t be excreted after inhalation, which will become silicosis, asbestosis or pneumoconiosis. For example, the dust containing free silica component, when they deposits in the alveoli can cause fibrotic lesions, then harden lung tissue and lose respiratory function, forming "Silicosis".
For various grinding conditions, Kaisen provide different types of dust treatment solution according to the actual situation, which include grinding dust collector, grinding room, grinding workbench and other treatment form. Capturing the dust at source, prevent the spread of dust from polluting products and the environment, and equipped with advanced monitoring alarm function, environmental real-time data detection and other industry specific needs.
Grinding Dust Collector: Mainly used for light and small workpiece grinding, which can effectively capture and purify the dust generated in the process of grinding. Place the grinding workpiece on the grinding table for operation, the design of the grinding table focuses on the airflow organization structure, can control the spread of dust in the grinding area effectively, the dust is sucked in dust collector, the exhausted air can meet indoor emission standards.
Grinding Room: According to design fixed grinding room or mobile retractable grinding room, set soft curtains on the opposite side of the air inlet and outlet, set up a suction wall on the opposite side or a combined grinding dust collector, form an effective control of wind speed on the entire space section by suction, make the generated dust into the dust collector, discharge after filtration. Supplement fresh air at the import and export, let the exhaust air volume is greater than supply air volume, form a micro negative pressure, prevent grinding dust overflowing from the grinding room.

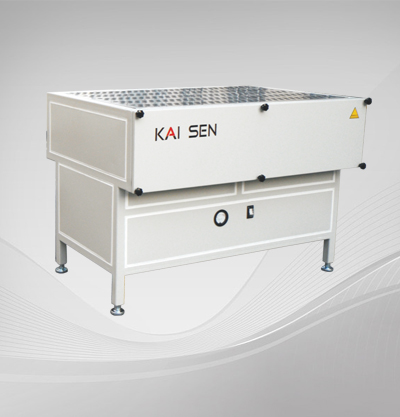

Grinding Workbench: For special workpiece and bad environment working condition, set grinding countertop on grinding station, the design of countertop is mainly consider the airflow structure design and grille suction port, can control the spread of dust in the grinding area effectively, the dust through ventilation grille suction port, enter the dust removal pipeline, finally sucked in dust collector, exhausted air can meet indoor emission standards.
